HYD-20KTL-3PH

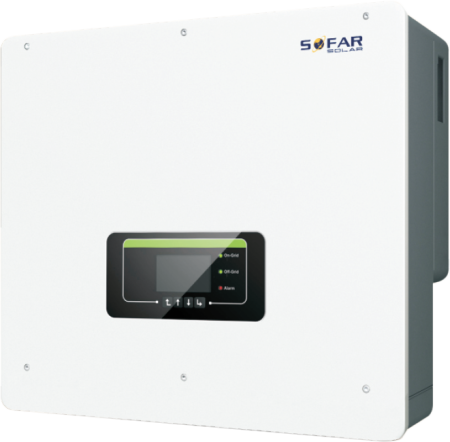

HYD-20KTL-3PH 2
Rentech
Rentech

HYD-20KTL-3PH

HYD

Three-Phase Energy storage integrated inverter. 2 MPPT inputs, more flexible configuration. Diversified work patterns and rapid gains. Multiple parallel systems, more flexible system solutions. Off-grid output can be connected to unbalanced load, three-phase separate output is supported. Maximum two battery inputs. Full digital control, higher control accuracy.

Power inverters

Specifications

General Type
Electronic Hardware
Additional Information
Dimensions: 571.4 x 515 x 264.1mm. Weight: 37kg. Inverter Technology: Transformerless. Cooling: Forced Airflow.
Specifications
Battery Input Data - Battery Type: Li-lon & Lead-acid. No. of battery input: 2. Battery voltage range: 180V-800V. Battery voltage range for full load: 400V-800V. Nominal charging/discharging power: 20000W. Max. charging/discharging current: 50A(25A|25A). Peak charging/discharging current, Duration: 70A(35A|35A), 60s. Charging strategy for battery: Self-adaption to BMS. Communication interfaces: CAN(RS485). Features - DC Terminal: MC4. Grid AC terminal: 5P Connector. Back-up AC terminal: 5P Connector. Display: LCD Display. Monitoring interfaces: Bluetooth | RS485 | WIFI | GPRS (optional). Parallel operation: Yes. See Brochure for more product information.
