Jerrycar

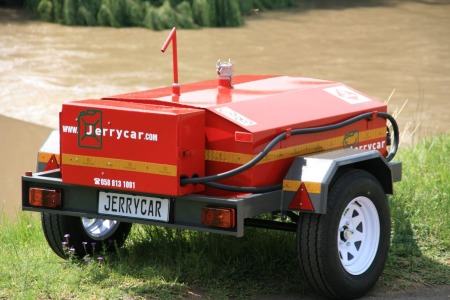

Jeta 1 Fuel Trailer

Chassis and suspension Structure and draw bar: 100mm x 50mm x 3mm rectangular tubing2 x 5 blade spring 685mm: Capacity 1300kgU/Br axle 45mm 5/114: Capacity 1300kgCoupling device: Trailer coupler clip-onRims 14" tyres 185 x 14C: (1700kg out rating on both tyres)Paint: Etch primer/stone chip all over/2K Top CoatVehicle dimensions Empty weight of vehicle: 280kgWidth: 1810mmHeight: 1000mm (breather and cap excluded)Height with breather: 1370mmLength with draw bar: 2500mmDraw bar length: 1040mmTrack: 1600mmTank Capacity: 630 litre with breather - pressure tested at 50kpaWall thickness: 2.5mm steelInlet: 65mm adaptor with quick coupler capOutlet: 25mm female at back of trailerPaint: Etch primer/stone chip all over/2K Top CoteAvailable in following colours: M/F red, Ford blue, Case red, John Deere green, Cat yellow, Landini blue, white, etc.
