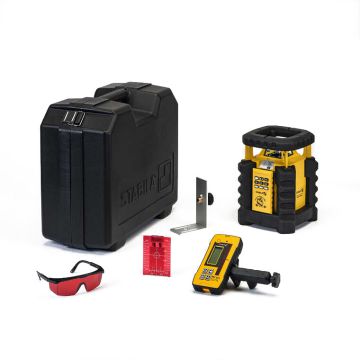

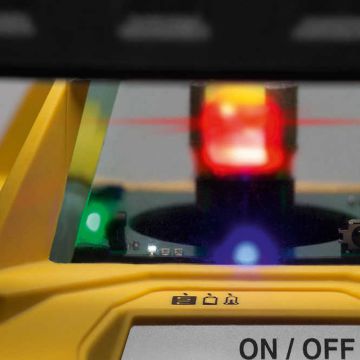

The new LAR 350 rotation laser incorporates \nmany groundbreaking technologies. \nIts revolutionary features make every measuring \ntask easier, quicker, more effective and even \nmore reliable. The most important innovations for increasing your productivity:\n1. MOTION CONTROL: An intuitive remote control with in-built movement sensor. By turning the remote control to the right or left, the movement sensor accelerates or decelerates the chosen \nlaser function. This enables you to intuitively control numerous functions and settings at a measuring range of up to 20 m.\n2. LED ASSIST system: The LEDs integrated into the laser housing light up to indicate various functions. The system helps you to monitor the LAR 350 from a distance. This prevents you from \nhaving to constantly carry out checks at the site of the laser, saving you time in your day-to-day work.\n3. SECTION MODE: The rotating laser beam can be limited to a particular sector. This prevents the beam from interfering with other lasers, causing them to malfunction or visually disturb other \nprofessionals working at the site. Multiple lasers can now work on different tasks simultaneously and without hindrance.

Specifications

Laser class 2\nOutput ? 1 mW\nLaser wavelength 635 nm\nSelf-levelling range plus minus 5<ac>?\nInclination plus minus 5<ac>?\nLevelling accuracy (horizontal and vertical) 0.1 mmperm\nMeasuring range of visible line 20 m\nRadius of working area for set receiver diameter 800 m\nOperating life approx. 80 hours\nBatteries included 2 x D\nProtection class IP 65
