PV panel

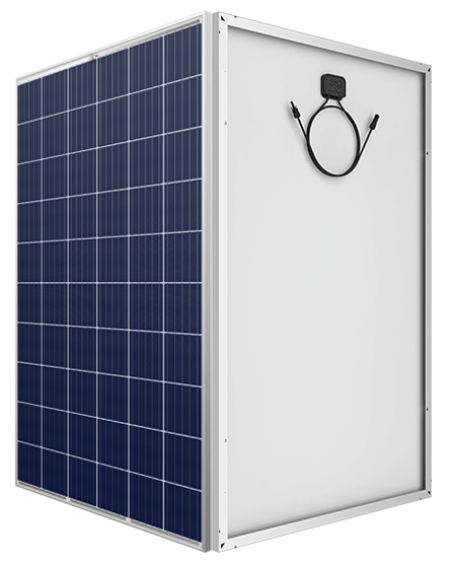

PV panel 2
Rentech
Rentech

PV panel

PV

SE technology effectively improves cell conversion efficiency. Optimized anti-reflective film and high-impedance encapsulating material to obtain excellent anti-PID performance. MBB and half-cell design to reduce shadow effects, improve module reliability and reduces loss.

Solar power generating systems

Specifications

General Type
Energy Solar
Additional Information
Dimensions (LxWxH): 2094x1038x35mm. Weight: 23.3kg
Specifications
Mechanical Parameters - Cell: 166x83 Mono. Cable Cross Section Size: 4mm2. No of Cells & Connections: 144 (6x24). No of Diodes: 3. Qualifications - Temperature Cycling Range: -40~+85. Max. Series Fuse Rating (A): 20. Max. Wind Load | Max. Snow Load (Pa): 2400 | 5400. Hot Spot Rate: 100 percent free. Fire Rating: Class C. Junction Box and Connector Protection Grade: IP68. See Broshure for more product information.
