Scorpius 400 Blue
Lighting

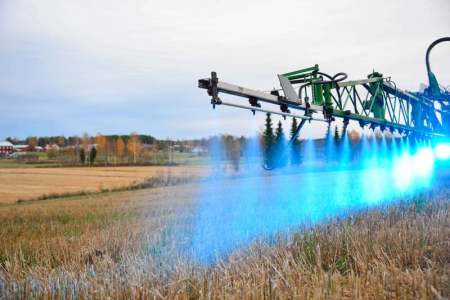

Originally developed for the mining industry, the standards for this work light are set high. Adapted to the agricultural industry, and designed specifically for crop sprayers, the Scorpius 400 Blue LED pencil beam illuminates the boom, the nozzles and the spray pattern.
Light emitting diodes (LEDs)Specifications
- General Type
- Lighting
- Specifications
- Light Color: Blue, 475 nm Luminous intensity: 30 000 cd Nominal Voltage DC: 12 V, 24 V Input Voltage DC: 9 - 16 V, 18 - 32 V Power Consumption: 42 W Nominal Current at: 24V=2.1A, 12V=4.2A Connector: Built-in Deutsch DT-2 (2-pin) Mount: Single Bolt M10 Shock: 60 G Lens: Grilamid (registered trademark of EMS-GRIVORY) Body / Housing: Aluminium Weight: 1.1 kg IP Rating: IP68, IP6K9K Salt Spray Test: ISO 9227 240 H EMC : CISPR 25 Class 5, ISO 13766, ISO 14982, ISO 7637-2, EN 61000-4-2" Operating Temperatures: -40 degrees C... +85 degrees C (Overheat protected) Electronics: Isolated
