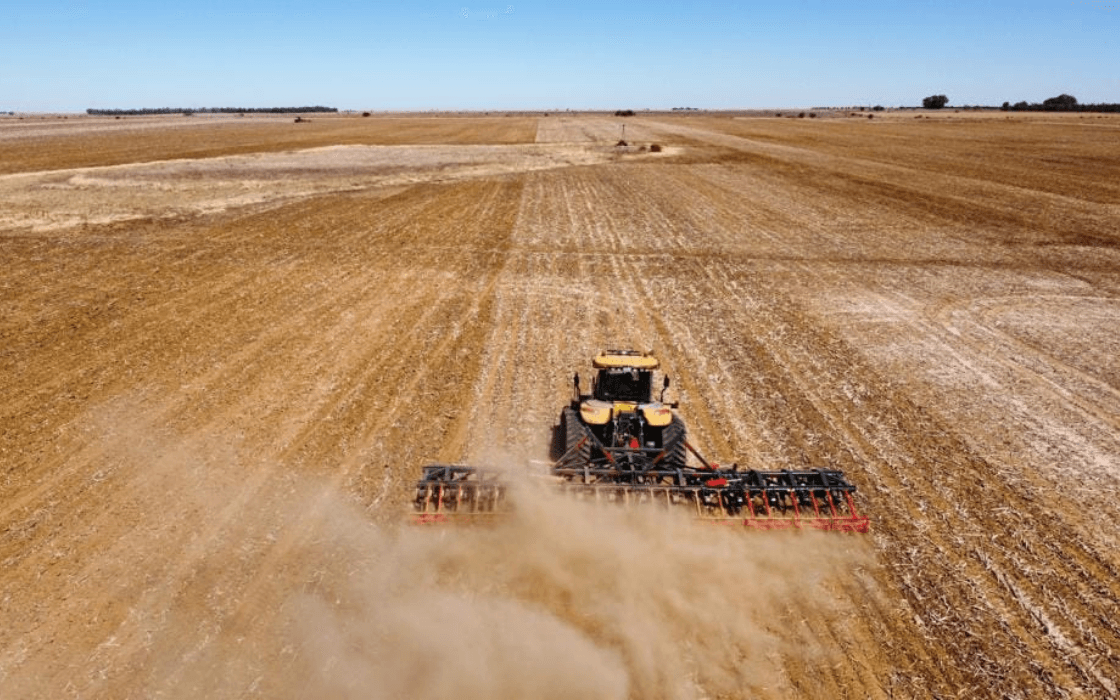

In the modern farming environment, there is a significant need for versatile, cost-effective, and reliable agricultural implements. The Arlington Staalwerke’s Flexmaster offers exactly these qualities—a multipurpose implement designed to address weed removal and proper seedbed preparation. This tool is highly adaptable and allows for various configurations depending on your specific needs and soil conditions.

Versatility and Adaptability

The Flexmaster has the option to use different shares depending on the specific requirements. You can choose between standard sweep shares, available in sizes ranging from 260 mm to 340 mm, or reversible points measuring 280 mm long and 70 mm wide—ideal for deeper soil penetration, especially in drought conditions. For optimal results, sweep shares can be mounted on the front rows, with chisel shares at the rear, providing the best combination for soil cultivation and seedbed preparation.





Economy and Value

The Flexmaster is one of the most economical seedbed preparation tools currently available on the market. Locally manufactured, it competes on equal footing with international models in terms of performance and cost efficiency. Considering all associated costs, including purchase, operating, and maintenance expenses, the Flexmaster remains relatively affordable compared to its European counterparts.





Unique Design and Structure

The Flexmaster’s unique design and structure make it an extremely reliable and durable implement for South African farmers. This 12-meter machine is designed to operate without wheels and is attached to a three-point lift, making it ideal for the challenging road conditions in South Africa. By eliminating wheels and towed models, the high costs and maintenance associated with wheel bearings, axles, and tow bars are entirely avoided. Instead, the Flexmaster is mounted on a lift, and extensive testing has shown no issues with the tractor's tower, hinges, or frame.

The structural design is reinforced with triangular profile plates connecting the base beams, supplemented by additional supports to keep everything straight and strong. This triangular design distributes stress from the top of the tower to the lower beam, enhancing its strength—a crucial feature for ensuring the machine’s longevity. Built with durability in mind, the structure is designed to serve both you and future generations.

The flotation wheels also have sufficient clearance behind the tractor’s dual wheels, and all plates working on the base are profiled to distribute stress evenly, increasing their lifespan.







Tines and Spacing





The Flexmaster offers tine options ranging from 7 tines to more than 55 tines, depending on the tractor’s capacity and the farmer’s specific needs. These specifications can be further adjusted to meet individual requirements, making the Flexmaster a cost-effective solution for any farmer. It is designed to accommodate a variety of tines from different manufacturers, enhancing its versatility. Arlington Staalwerke’s also offers its own range of tines and soil-related parts, which are highly competitive in the market and specifically developed for South African conditions.

The machine is equipped with two beams and hangers that tilt forward and backward, forming a four-row configuration. This ensures efficient material flow through the machine. There are two inter-tine spacing options: 200 mm for closer spacing or the standard 225 mm, recommended for broader working widths. The widest sweep shares that can be mounted are 340 mm, allowing for an overlap of over 110 mm between two shares.







Hinges





Hinges are often a source of problems, but the Flexmaster’s hinges are meticulously designed and manufactured with precise tolerances. Additional plates reinforce the supports, and two broad hinges, strengthened with a 38 mm pin, provide ample strength and reliability. This design makes the machine "foolproof," ensuring long-term reliability even under heavy working conditions.





Sprayer Frame Options





The Flexmaster can also be equipped with a sprayer frame, enabling the application of pesticides from tanks mounted on the tractor’s nose to the rear of the machine. Alternatively, a 1,000-liter tank can be mounted on the neck, and the frame is strong enough to support this weight, adding even more functionality to the machine.





Seedbed Roller





The machine is further equipped with a spiral seedbed roller that levels the soil evenly. Bearing protectors are included to shield the bearings from dust, stubble, and debris, extending the machine’s lifespan.





Conclusion





If you’d like more information or are interested in the Flexmaster, click the link below to contact the team at Arlington Staalwerke’s. They will assist you in finding the perfect machine for your needs.
